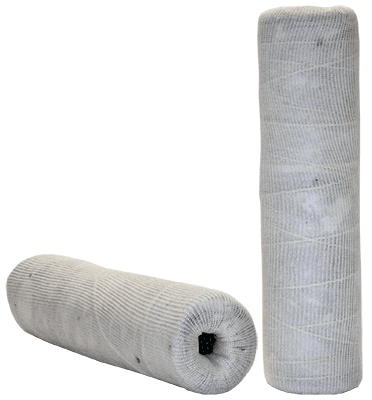

533712 | WIX | Fuel Filter Element | OFS # 97-10-0151

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID

Dimensional Specifications
Outer Diameter, Top: 2.88 IN (73.15 MM)

Outer Diameter, Bottom: 2.88 IN (73.15 MM)

Inner Diameter, Top: 1.34 IN (34.04 MM)

Inner Diameter, Bottom: 1.34 IN (34.04 MM)

Length: 10.00 IN (254.00 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: CORK

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - PAPER

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 9.70 LB (4.40 KG)
