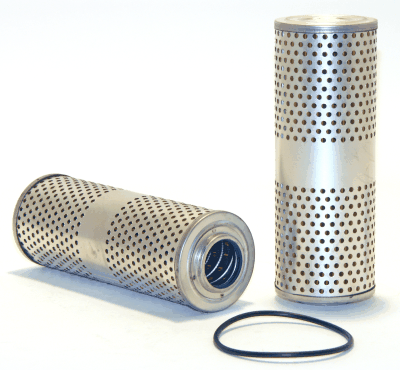

51760 | WIX | Pleated Paper Element | OFS # 97-01-0939
***Image may vary***

51760 | WIX | Pleated Paper Element | OFS # 97-01-0939

  • $14.52


PLEATED PAPER ELEMENT

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 2.63 IN (66.80 MM)

Outer Diameter, Bottom: 2.63 IN (66.80 MM)

Inner Diameter, Top: 1.25 IN (31.75 MM)

Inner Diameter, Bottom:

Length: 7.31 IN (185.67 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 5.50 LB (2.49 KG)
