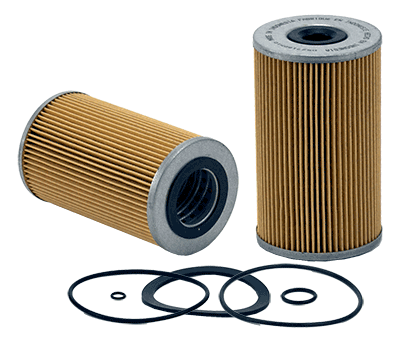

51745 | WIX | Pleated Paper Element | OFS # 97-01-0836
***Image may vary***

51745 | WIX | Pleated Paper Element | OFS # 97-01-0836

  • $16.95


PLEATED PAPER ELEMENT

Performance Data
Micron Rating: 20.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.28 IN (83.31 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.72 IN (18.29 MM)

Inner Diameter, Bottom:

Length: 5.69 IN (144.53 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight: 6.00 LB (2.72 KG)
