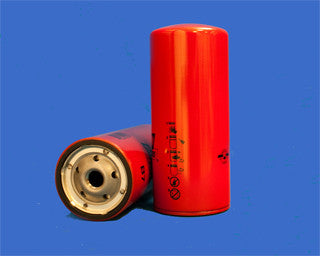

51722 | WIX | OFS # 97-25-0462

SPIN-ON ELEMENT Spin-On Element

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 20.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.66 IN (118.36 MM)

Outer Diameter, Bottom: 4.66 IN (118.36 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 11.28 IN (286.51 MM)

Thread: 1-1/2-16

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 17.80 LB (8.07 KG)
