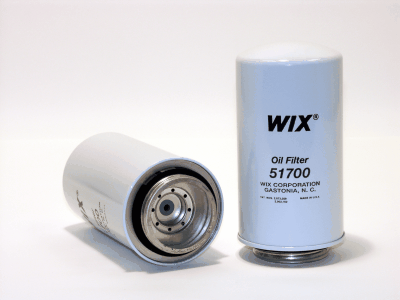

51700 | WIX | Pleated Paper Element | OFS # 97-01-0943

PLEATED PAPER ELEMENT

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.88 IN (98.55 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 7.63 IN (193.80 MM)

Thread: 2-3/4-4

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 16.50 LB (7.48 KG)
