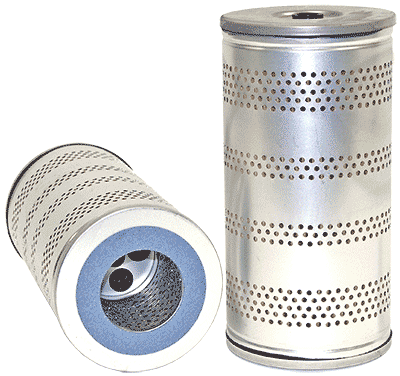

51405 | WIX | Pleated Paper Element | OFS # 97-01-0933
PLEATED PAPER ELEMENT
Performance Data
Micron Rating: 0.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.50 IN (114.30 MM)
Outer Diameter, Bottom:
Inner Diameter, Top: 0.53 IN (13.46 MM)
Inner Diameter, Bottom: 2.27 IN (57.66 MM)
Length: 9.06 IN (230.12 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: NONE
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 15.50 LB (7.03 KG)
