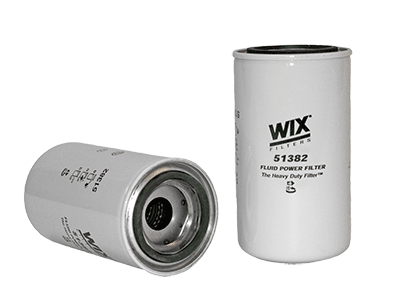

51382 | WIX | Pleated Paper Element | OFS # 97-01-3214
***Image may vary***

51382 | WIX | Pleated Paper Element | OFS # 97-01-3214

  • $20.17


PLEATED PAPER ELEMENT

Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.72 IN (94.49 MM)

Outer Diameter, Bottom: 3.72 IN (94.49 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 6.85 IN (173.99 MM)

Thread: 2-16 UNS-2B



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN SPIN ON



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
