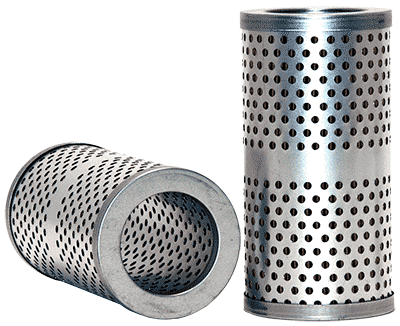

51317 | WIX | Pleated Paper Element | OFS # 97-01-1296
***Image may vary***

51317 | WIX | Pleated Paper Element | OFS # 97-01-1296

  • $0.00

CALL FOR PRICE

PLEATED PAPER ELEMENT

Lead Time: Please Call


Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: N/A

Direction of Flow: OUTSIDE->IN



Dimensional Specifications
Outer Diameter, Top: 2.53 IN (64.26 MM)

Outer Diameter, Bottom: 2.53 IN (64.26 MM)

Inner Diameter, Top: 1.71 IN (43.43 MM)

Inner Diameter, Bottom: 1.71 IN (43.43 MM)

Length: 5.00 IN (127.00 MM)

Thread: N/A



Physical Specifications
Handle: NONE

Seal Material: N/A

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: N/A

Plating: N/A

Outer Jacket: YES - PERFORATED

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
