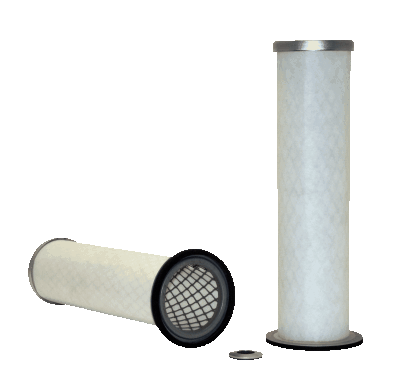

42632 | WIX | OFS # 97-28-1592

Lead Time: Please Call

Performance Data
Micron Rating: 14.50

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 2.96 IN (75.18 MM)

Outer Diameter, Bottom: 3.65 IN (92.71 MM)

Inner Diameter, Top: 2.45 IN (62.23 MM)

Inner Diameter, Bottom: 2.41 IN (61.21 MM)

Length: 11.07 IN (281.18 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.20 LB (0.54 KG)
