42547 | WIX | OFS # 97-22-0679

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 22.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 8.25 IN (209.55 MM)

Outer Diameter, Bottom: 8.25 IN (209.55 MM)

Inner Diameter, Top: 0.91 IN (23.11 MM)

Inner Diameter, Bottom: 7.11 IN (180.59 MM)

Length: 22.38 IN (568.45 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: 3580 SQ. IN.

Plating: N/A

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.00 LB (2.27 KG)

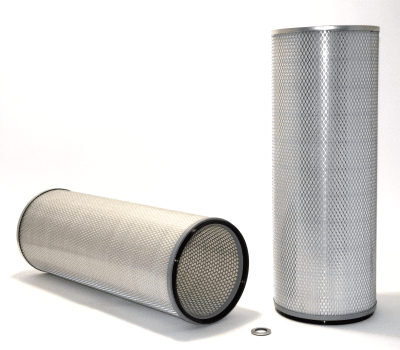

Intake Air Filter Element
