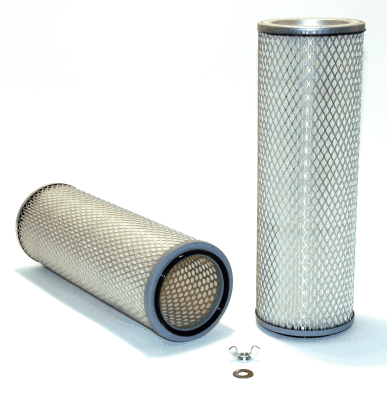

42267 | WIX | Intake Air Filter Element | OFS # 97-28-1390
***Image may vary***

42267 | WIX | OFS # 97-28-1390

  • $43.38


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 15.00 NOMIMAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.13 IN (104.90 MM)

Outer Diameter, Bottom: 4.13 IN (104.90 MM)

Inner Diameter, Top: 0.38 IN (9.65 MM)

Inner Diameter, Bottom: 3.00 IN (76.20 MM)

Length: 12.25 IN (311.15 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)

Intake Air Filter Element
