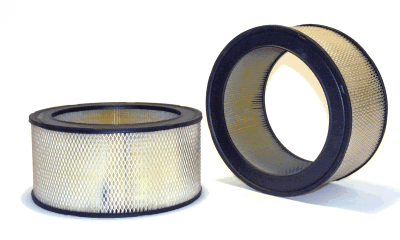

42122 | WIX | OFS # 97-22-0596

Lead Time: Please Call

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 11.43 IN (290.32 MM)

Outer Diameter, Bottom: 11.43 IN (290.32 MM)

Inner Diameter, Top: 8.61 IN (218.69 MM)

Inner Diameter, Bottom: 8.61 IN (218.69 MM)

Length: 5.55 IN (140.97 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: MOLDED

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 14.00 LB (6.35 KG)
