42110 | WIX | OFS # 97-22-0469

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 6.63 IN (168.40 MM)

Outer Diameter, Bottom: 6.38 IN (162.05 MM)

Inner Diameter, Top: 5.00 IN (127.00 MM)

Inner Diameter, Bottom: 5.00 IN (127.00 MM)

Length: 3.00 IN (76.20 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: PLASTISOL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.80 LB (1.72 KG)

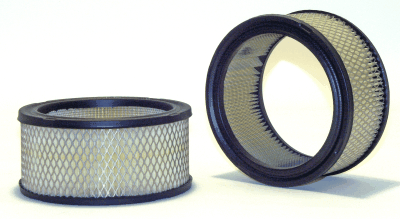

Intake Air Filter Element
