42087 | WIX | OFS # 97-28-1864

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 14.50

Beta Rating: 200

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.50 IN (139.70 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 3.80 IN (96.52 MM)

Inner Diameter, Bottom:

Length: 3.10 IN (78.74 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 4.00 LB (1.81 KG)

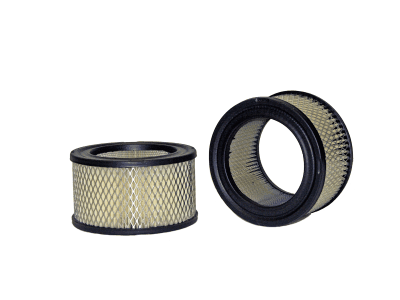

Intake Air Filter Element
