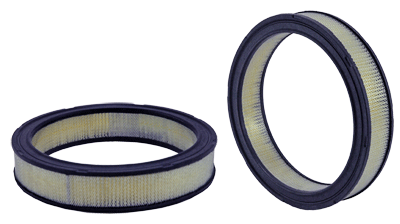

42067 | WIX | Intake Air Filter Element | OFS # 97-28-1409
***Image may vary***

42067 | WIX | OFS # 97-28-1409

  • $6.72

Lead Time: Please Call

Performance Data

Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Change out Differential Pressure: 20 PSID

Dimensional Specifications

Outer Diameter, Top: 10.88 IN (276.35 MM)

Outer Diameter, Bottom: 10.88 IN (276.35 MM)

Inner Diameter, Top: 9.00 IN (228.60 MM)

Inner Diameter, Bottom: 9.00 IN (228.60 MM)

Length: 2.13 IN (54.10 MM)

Thread: NONE

Physical Specifications

Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: MOLDED


Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

WIX Filters Black & White Logo/Link To WIX Filters Cross Reference

Click Here For WIX Filters Dimensional Specifications

Packaging Specifications
Number per Carton: 1

Carton Weight: 7.60 LB (3.45 KG)

Call For Broken Carton

Intake Air Filter Element
