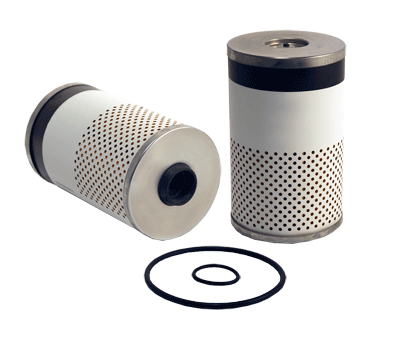

33709 | WIX | Pleated Paper Element | OFS # 97-10-0198
***Image may vary***

33709 | WIX | Pleated Paper Element | OFS # 97-10-0198

  • $9.55


PLEATED PAPER ELEMENT

Lead Time: Please Call


Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID



Dimensional Specifications
Outer Diameter, Top: 3.00 IN (76.20 MM)

Outer Diameter, Bottom: 3.00 IN (76.20 MM)

Inner Diameter, Top: 1.06 IN (26.92 MM)

Inner Diameter, Bottom: 1.06 IN (26.92 MM)

Length: 7.81 IN (198.37 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 6.40 LB (2.90 KG)
