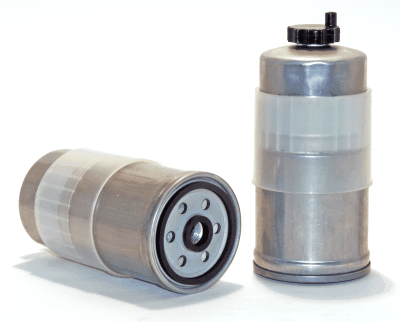

33602 | WIX | OFS # 97-25-0900

SPIN-ON ELEMENT Spin-On Element

Lead Time: Please Call

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.27 IN (83.06 MM)

Outer Diameter, Bottom: 3.27 IN (83.06 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 7.40 IN (187.96 MM)

Thread: 16 X 1.5MM

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.20 LB (0.54 KG)
