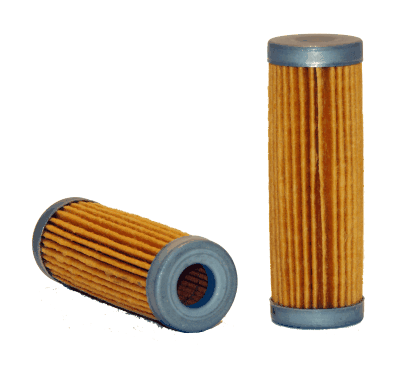

33389 | WIX | Fuel Filter Element | OFS # 97-28-1917
FUEL FILTER ELEMENT
Lead Time: Please Call
Performance Data
Micron Rating: 0.00 N/A
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: N/A
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 1.16 IN (29.46 MM)
Outer Diameter, Bottom:
Inner Diameter, Top: 0.50 IN (12.70 MM)
Inner Diameter, Bottom:
Length: 3.41 IN (86.61 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: N/A
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: N/A
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 0.60 LB (0.27 KG)
