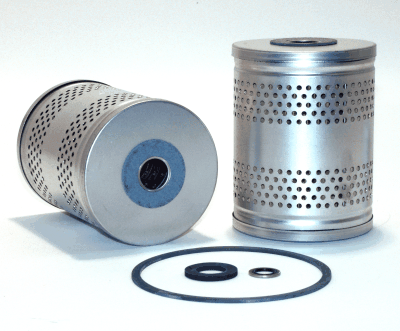

33273 | WIX | Pleated Paper Element | OFS # 97-01-0887
***Image may vary***

33273 | WIX | Pleated Paper Element | OFS # 97-01-0887

  • $9.48


PLEATED PAPER ELEMENT

Lead Time: Please Call


Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.97 IN (100.84 MM)

Outer Diameter, Bottom: 3.97 IN (100.84 MM)

Inner Diameter, Top: 0.77 IN (19.56 MM)

Inner Diameter, Bottom: 0.77 IN (19.56 MM)

Length: 4.85 IN (123.19 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 6.50 LB (2.95 KG)
