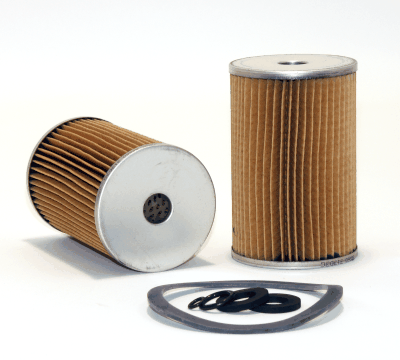

33260 | WIX | Pleated Paper Element | OFS # 97-01-0871
***Image may vary***

33260 | WIX | Pleated Paper Element | OFS # 97-01-0871

  • $11.86


PLEATED PAPER ELEMENT

Lead Time: Please Call


Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 2.80 IN (71.12 MM)

Outer Diameter, Bottom: 2.80 IN (71.12 MM)

Inner Diameter, Top: 0.62 IN (15.75 MM)

Inner Diameter, Bottom: 0.62 IN (15.75 MM)

Length: 4.17 IN (105.92 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 0.35 LB (0.16 KG)
