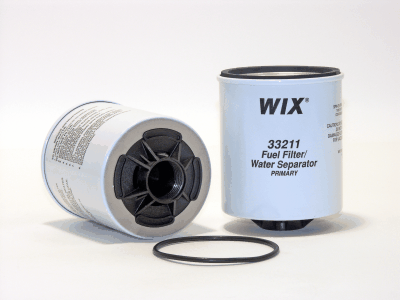

33211 | WIX | Fuel/Water Separator Element | OFS # 97-28-0736
***Image may vary***

33211 | WIX | Fuel/Water Separator Element | OFS # 97-28-0736

  • $29.50


Lead Time: Please Call


Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.81 IN (96.77 MM)

Outer Diameter, Bottom: 3.81 IN (96.77 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 4.69 IN (119.13 MM)

Thread: 1-14



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 1.40 LB (0.64 KG)
