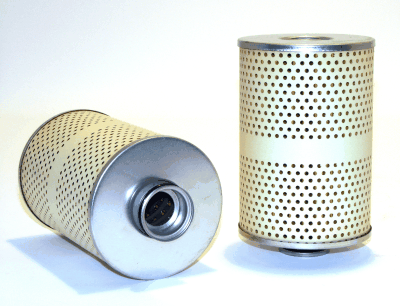

33157 | WIX | Pleated Paper Element | OFS # 97-01-0868
PLEATED PAPER ELEMENT
Lead Time: Usually Ships In 24-28 Hours
Performance Data
Micron Rating: 0.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.22 IN (107.19 MM)
Outer Diameter, Bottom: 4.22 IN (107.19 MM)
Inner Diameter, Top: 0.80 IN (20.32 MM)
Inner Diameter, Bottom:
Length: 6.75 IN (171.45 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 11.40 LB (5.17 KG)
