33120 - WIX   - Online Filter Supply Replacement Part # 97-01-0737

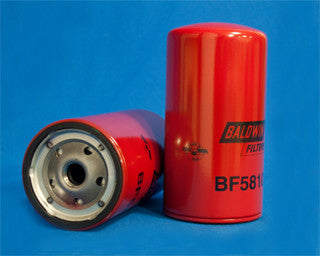

***Image may vary***

33120 - WIX - OFS # 97-01-0737

  • $9.86

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: THREAD SIZE : 13/16-12 UNS-2B

Dimensional Specifications
Outer Diameter, Top: 3.67 IN (93.22 MM)

Outer Diameter, Bottom: 3.67 IN (93.22 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 6.89 IN (175.01 MM)

Thread: 13/16-12UNS-2

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: N/A

Type of Endcap: PLATED STEEL


Type of Media: PAPER

Filter Area: N/A

Plating: NONE

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 15.70 LB (7.12 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
