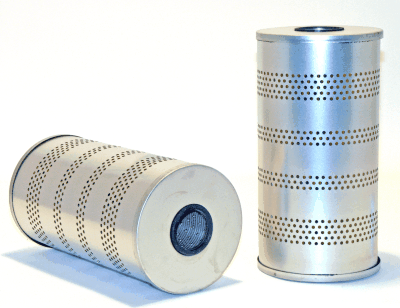

24954 | WIX | Full Flow Lube Element | OFS # 97-28-1298
***Image may vary***

24954 | WIX | Full Flow Lube Element | OFS # 97-28-1298

  • $12.43


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 5.00 IN (127.00 MM)

Outer Diameter, Bottom: 5.00 IN (127.00 MM)

Inner Diameter, Top: 1.48 IN (37.59 MM)

Inner Diameter, Bottom: 1.48 IN (37.59 MM)

Length: 9.66 IN (245.36 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 12

Carton Weight: 20.40 LB (9.25 KG)
