24842 | WIX | OFS # 97-28-9928

2 WEEK LEAD TIME.

2 ORDER MIN.

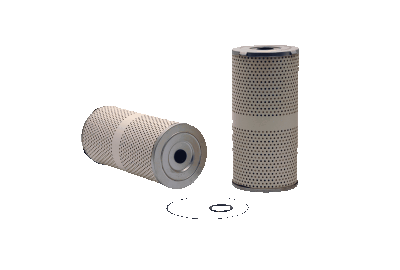

Filter Element

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.50 IN (114.30 MM)

Outer Diameter, Bottom: 4.50 IN (114.30 MM)

Inner Diameter, Top: 0.55 IN (13.97 MM)

Inner Diameter, Bottom: 1.10 IN (27.94 MM)

Length: 9.37 IN (238.00 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
