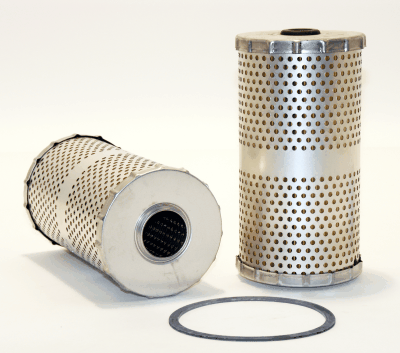

24122 | WIX | Pleated Paper Elemet | OFS # 97-33-9015

Lead Time: Please Call

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.55 IN (90.17 MM)

Outer Diameter, Bottom: 3.55 IN (90.17 MM)

Inner Diameter, Top: 1.28 IN (32.51 MM)

Inner Diameter, Bottom: 0.63 IN (16.00 MM)

Length: 6.57 IN (166.88 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN W/BH

Packaging Specifications
Number per Carton: 1

Carton Weight:
