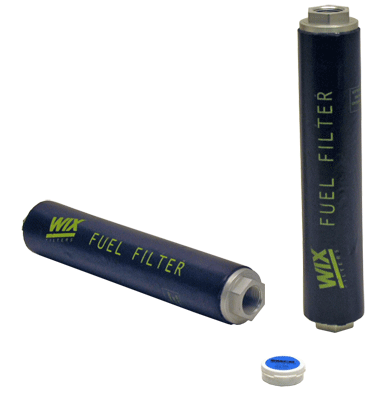

24003 | WIX | In Hose Fuel Filter Assembly | OFS # 97-28-9719
***Image may vary***

24003 | WIX | In Hose Fuel Filter Assembly | OFS # 97-28-9719

  • $44.20


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 7.00

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 2.19 IN (55.63 MM)

Outer Diameter, Bottom: 2.19 IN (55.63 MM)

Inner Diameter, Top: 0.75 IN (19.05 MM)

Inner Diameter, Bottom: 0.75 IN (19.05 MM)

Length: 11.00 IN (279.40 MM)

Thread: 3/4" FEMALE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
