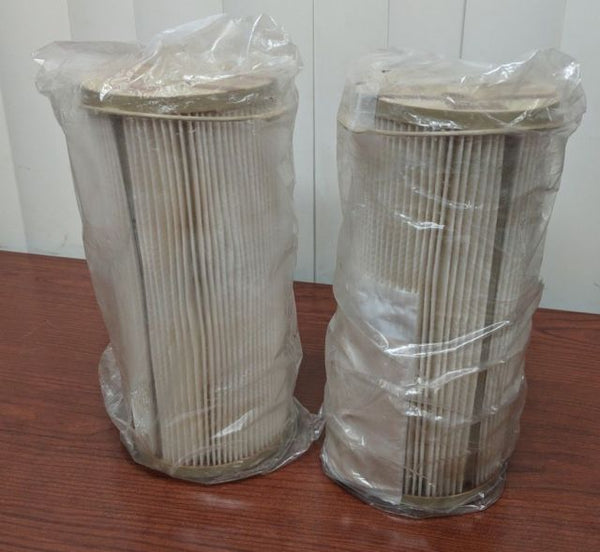

2020SM | Racor | OFS# 97-28-0104

• AVAILABILITY: 2 WEEKS
• PERFORMANCE DATA

  MICRON RATING:	2.00 NOMINAL
  BETA RATING:	N/A
  COLLAPSE PRESSURE RATING:
  MAXIMUM TEMPERATURE:	225 F
  DIRECTION OF FLOW:	OUTSIDE->IN
  RECOMMENDED CHANGEOUT DIFFERENTIAL PRESSURE:	20 PSID

• DIMENSIONAL SPECIFICATIONS

  (A) OUTER DIAMETER, TOP:	4.29 IN (108.97 MM)
  (B) OUTER DIAMETER, BOTTOM:	4.29 IN (108.97 MM)
  (C) INNER DIAMETER, TOP:	0.65 IN (16.51 MM)
  (D) INNER DIAMETER, BOTTOM:	0.83 IN (21.08 MM)
  (E) LENGTH:	8.78 IN (21.08 MM)
  (F) THREAD:	NONE

• PHYSICAL SPECIFICATIONS

  HANDLE:	YES
  SEAL MATERIAL:	BUNA-N
  TYPE OF ADHESIVE:
  TYPE OF ENDCAP:	PLASTIC/METAL
  CENTER TUBE:	PLATED STEEL
  TYPE OF MEDIA:	PAPER
  FILTER AREA:	SQ.IN.
  PLATING:	N/A
  OUTER JACKET:	NONE - NONE
  CONFIGURATION:	SINGLE OPEN WITH B/H

• PACKAGING SPECIFICATIONS

  NUMBER PER CARTON:	12
  CARTON WEIGHT:	14.00 LB (6.35 KG)

***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
