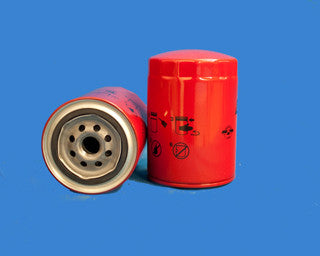

131206 - BALDWIN   - Online Filter Supply Replacement Part # 97-28-0101
***Image may vary***

131206 - BALDWIN - OFS # 97-28-0101

  • $9.42


AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating:  30.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  3.78 IN   (96.01 MM)

Outer Diameter, Bottom:  3.78 IN   (96.01 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  5.32 IN   (135.13 MM)

Thread:  3/4"-16



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  N/A

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  12

Carton Weight:  15.00 LB   (6.80 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangable" with original manufacture parts, Names and part # used for cross reference only.**
