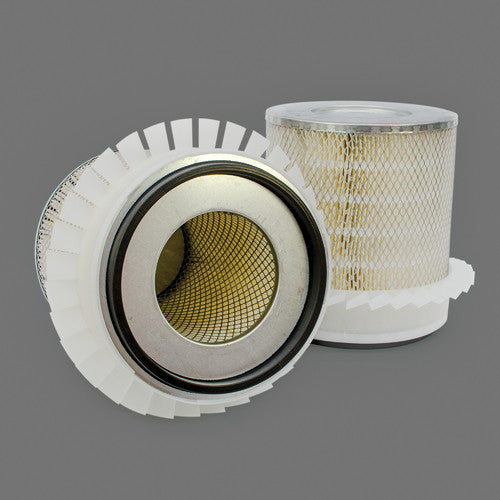

1-14215095-0 - BALDWIN
***Image may vary***

1-14215095-0 - BALDWIN - OFS # 97-22-0472

  • $46.49

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  11.70 IN   (297.18 MM)

Outer Diameter, Bottom:  9.21 IN   (233.93 MM)

Inner Diameter, Top:  4.86 IN   (123.44 MM)

Inner Diameter, Bottom:  0.54 IN   (13.72 MM)

Length:  10.56 IN   (268.22 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE/BOLT/FINS

Packaging Specifications
Number per Carton:  1

Carton Weight:  5.50 LB   (2.49 KG)


**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
