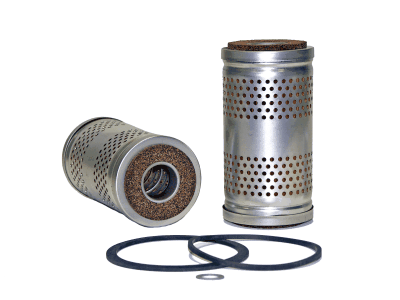

0227040-7 | Allis Chalmers |

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  25 PSID

Dimensional Specifications
Outer Diameter, Top:  3.01 IN   (76.45 MM)

Outer Diameter, Bottom:  3.01 IN   (76.45 MM)

Inner Diameter, Top:  1.04 IN   (26.42 MM)

Inner Diameter, Bottom:  1.04 IN   (26.42 MM)

Length:  5.71 IN   (145.03 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  CORK

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - PAPER

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  6.00 LB   (2.72 KG)

***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacturer parts, Names and part # used for cross reference only.***
