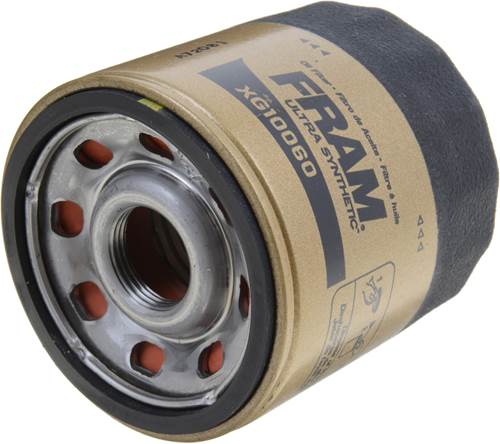

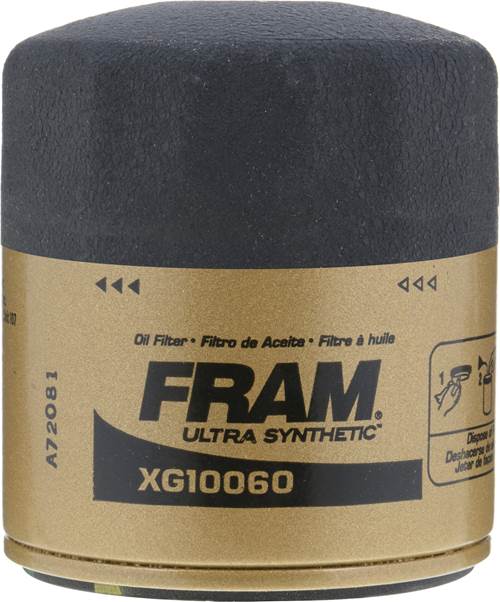

Spin-On Filter Element



Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications

Outer Diameter, Top:  3.00 IN   (76.20 MM)

Outer Diameter, Bottom:  3.00 IN   (76.20 MM)

Base Gasket Inner Diameter: 2.46 IN  (62.484 MM)

Base Gasket Outer Diameter: 2.76 IN  (70.104 MM)

Base Gasket Thickness: 0.191  (4.8514 MM)

Length:  3.33 IN   (84.582 MM)

Thread:  M22X1.5

 By-Pass Valve Setting: 91-15



Physical Specifications

Anti-Drain-Back Valve: YES

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  12

Carton Weight:  8.80 LB   (3.99 KG)
