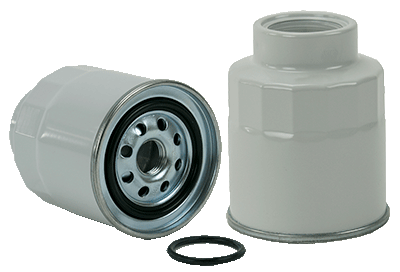

WF10228 | WIX | Spin On Fuel Water Separator w/ Open End Bottom

Lead Time: Usually Ships In 24-48 Hours

Principle Application:  Isuzu Trucks (China) - sensor port size is 36x1.5 mm

Performance Data
Micron Rating:

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.31 Inches (84 MM)

Gasket Outer Diameter:  2.500 Inches (64 MM)

Length:  3.97  Inches (101 MM)

Thread:  3/4-16

Physical Specifications
Handle:  NONE

Type of Filter:  FULL FLOW

Type of Media:  WIRE MESH

Type of Endcap:  PLATED STEEL

Type of Service:  FUEL

Type: Bypass

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:

Packaging Specifications
Number per Carton:  1

Carton Weight: 0.60 LBS

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
