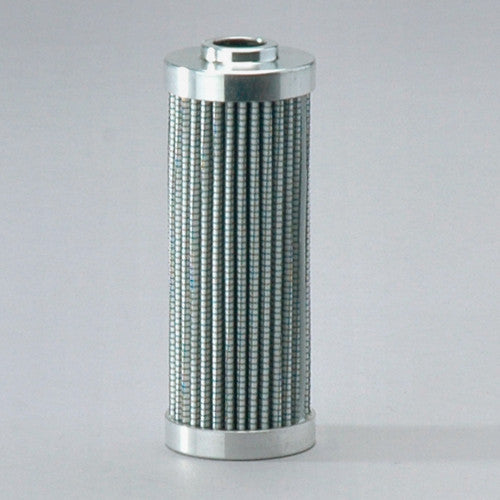

W02AP365 | WIX | Pleated Paper Element | OFS # 97-28-2073 |

PLEATED PAPER ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data

Micron Rating:  25.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications

Outer Diameter, Top:  1.25 IN   (31.75 MM)

Outer Diameter, Bottom:  1.25 IN   (31.75 MM)

Inner Diameter, Top:  0.50 IN   (12.70 MM)

Inner Diameter, Bottom:

Length:  1.25 IN   (31.75 MM)

Thread:  NONE

Physical Specifications

Handle:  NONE

Seal Material:  NONE

Type of Adhesive:  EPOXY

Type of Endcap:  STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  19 SQ.IN.

Plating:  N/A

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications

Number per Carton:  1

Carton Weight:  1.00 LB   (0.45 KG)

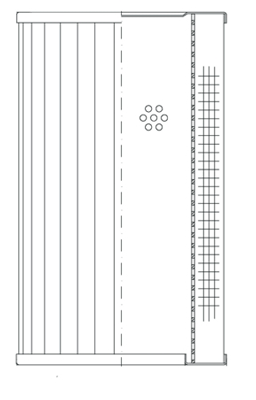

 Click Here For WIX Filters Dimensional Specifications

Click Here For Donaldson Dynamic Specifications

Click Here To Watch A  Video: Donaldson Hydraulic Filter Servicing



*** NOTE: While every effort is made to ensure the accuracy of our cross reference, this is only intended as a reference tool. It is updated regularly as new information becomes available. Technical information and Images are available, and it is the responsibility of the customer to verify the correct element prior to purchase and installation.
