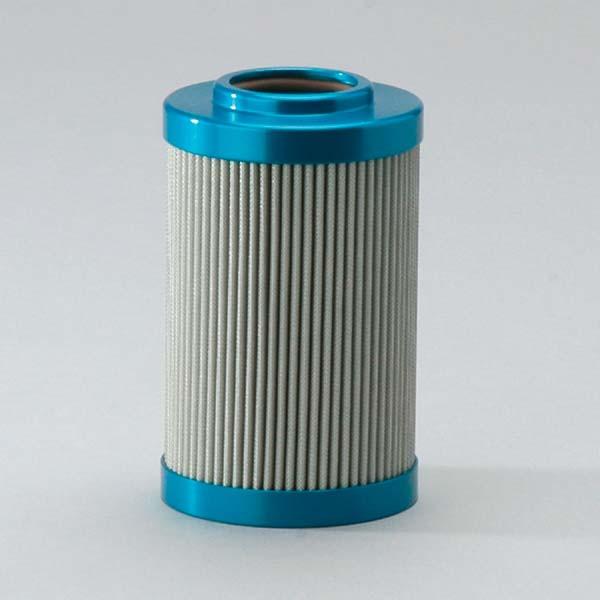

SE045H10V | Stauff Corp | Pleated Microglass Filter Element | OFS # 10V-97-05-0051
***Image may vary***

SE045H10V | Stauff Corp | OFS # 10V-97-05-0051

  • $68.11


Usually Ships In 1-2 Business Days


Performance Data
Micron Rating:  12.00 ABSOLUTE

Beta Rating:  B12 = 200

Collapse Pressure Rating:  100 PSID

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID



Dimensional Specifications
Outer Diameter, Top:  2.75 IN   (69.85 MM)

Outer Diameter, Bottom:  2.75 IN   (69.85 MM)

Inner Diameter, Top:  1.38 IN   (35.05 MM)

Inner Diameter, Bottom:

Length:  4.50 IN   (114.30 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  VITON

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  1.70 LB   (0.77 KG)



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
