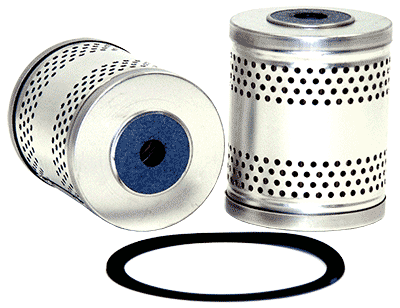

PLEATED PAPER ELEMENT

Performance Data
Micron Rating:  20.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.47 IN   (88.14 MM)

Outer Diameter, Bottom:  3.47 IN   (88.14 MM)

Inner Diameter, Top:  0.94 IN   (23.88 MM)

Inner Diameter, Bottom:  0.94 IN   (23.88 MM)

Length:  4.06 IN   (103.12 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  0.52 LB   (0.24 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
