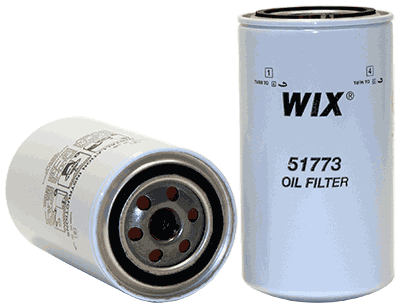

SPIN-ON ELEMENT Spin-On Element

Performance Data
Micron Rating:  20.00 NOMINAL

Beta Rating:  N/A BPV 9.57

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.78 IN   (96.01 MM)

Outer Diameter, Bottom:  3.78 IN   (96.01 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  6.90 IN   (175.26 MM)

Thread:  3/4-16

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE OPEN SPIN-ON

Packaging Specifications
Number per Carton:  12

Carton Weight:  16.80 LB   (7.62 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
