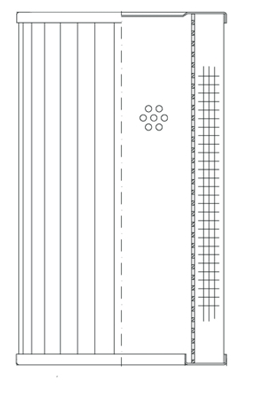

R122910| Ucc Hydraulics | Pleated Paper Element OFS # 97-28-2073

PLEATED PAPER ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  1.25 IN   (31.75 MM)

Outer Diameter, Bottom:  1.25 IN   (31.75 MM)

Inner Diameter, Top:  0.50 IN   (12.70 MM)

Inner Diameter, Bottom:

Length:  1.25 IN   (31.75 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  NONE

Type of Adhesive:  EPOXY

Type of Endcap:  STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  19 SQ.IN.

Plating:  N/A

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.00 LB   (0.45 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
