QSA598SY| Quaker State | OFS # 97-22-0808

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  10.16 IN   (258.06 MM)

Outer Diameter, Bottom:  7.68 IN   (195.07 MM)

Inner Diameter, Top:  6.02 IN   (152.91 MM)

Inner Diameter, Bottom:

Length:  13.05 IN   (331.47 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN/COVER

Packaging Specifications
Number per Carton:  1

Carton Weight:  4.40 LB   (2.00 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

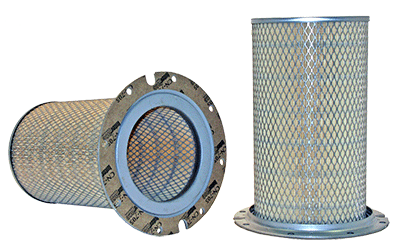

Intake Air Filter Element
