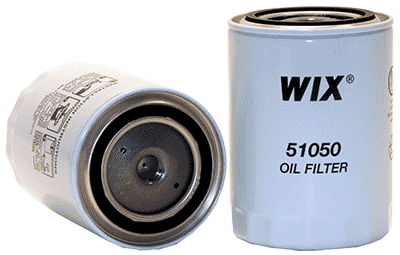

SPIN-ON ELEMENT Spin-On Element

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.73 IN   (94.74 MM)

Outer Diameter, Bottom:  3.73 IN   (94.74 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  5.78 IN   (146.81 MM)

Thread:  5/8-18 UNF2B

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.20 LB   (0.54 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
