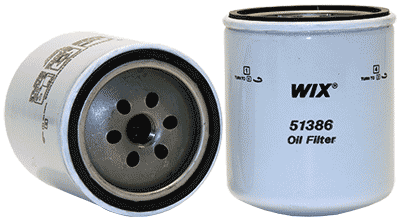

SPIN-ON ELEMENT Spin-On Element Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  20.00 NOMINAL

Beta Rating:  N/A BPV 19.58

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  4.24 IN   (107.70 MM)

Outer Diameter, Bottom:  4.24 IN   (107.70 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  4.61 IN   (117.09 MM)

Thread:  M20 X 1.5-6H

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  15.00 LB   (6.80 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
