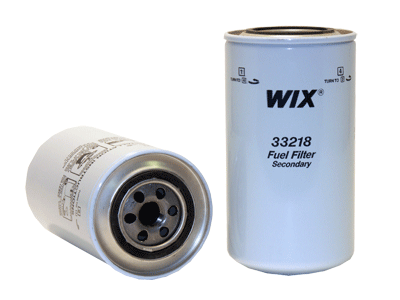

SPIN-ON ELEMENT Spin-On Element Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Additional Notes:  REPLACES BALDWIN # BF876

Dimensional Specifications
Outer Diameter, Top:  4.26 IN   (108.20 MM)

Outer Diameter, Bottom:  4.26 IN   (108.20 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  8.11 IN   (205.99 MM)

Thread:  7/8-16 UN-2B

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  22.10 LB   (10.02 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
