QH80NA12V10| Quality Filtrati | OFS # 97-05-2703

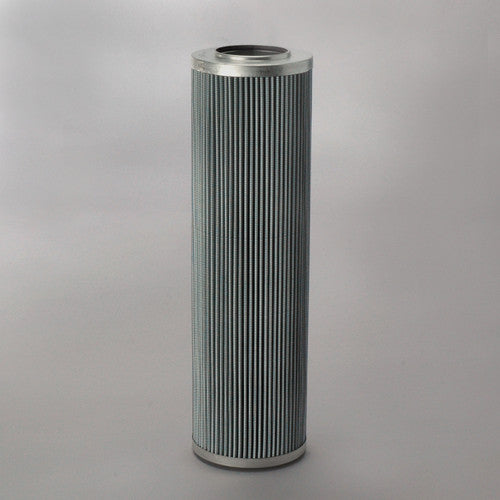

Pleated Microglass Element PLEATED MICROGLASS ELEMENT PLEASE CALL

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B10=200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Additional Notes: O-RING ID: 2.142"

Dimensional Specifications
Outer Diameter, Top: 3.78 IN (96.01 MM)

Outer Diameter, Bottom: 3.78 IN (96.01 MM)

Inner Diameter, Top: 2.23 IN (56.64 MM)

Inner Diameter, Bottom: 2.23 IN (56.64 MM)

Length: 13.11 IN (332.99 MM)

Thread: N/A

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: CORELESS

Type of Media: MICROGLASS

Filter Area: N/A

Plating: N/A

Outer Jacket: NONE - NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
