QH40NA12V08| Quality Filtrati OFS # 97-35-2562

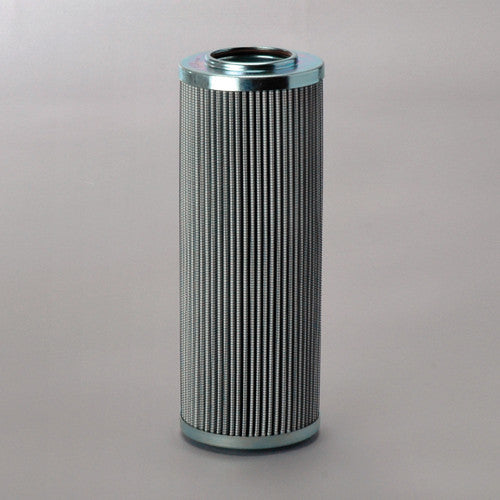

Pleated Microglass Element PLEATED MICROGLASS ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 VITON

Beta Rating: B10=200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 3.11 IN (78.99 MM)

Outer Diameter, Bottom: 3.11 IN (78.99 MM)

Inner Diameter, Top: 1.73 IN (43.94 MM)

Inner Diameter, Bottom: 1.73 IN (43.94 MM)

Length: 8.33 IN (211.58 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: CORELESS

Type of Media: MICROGLASS

Filter Area:

Plating:

Outer Jacket: NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
