QA12-5306| Flo-Line | OFS # 97-22-0445

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  180 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  19.50 IN   (495.30 MM)

Outer Diameter, Bottom:  19.50 IN   (495.30 MM)

Inner Diameter, Top:  5.56 IN   (141.22 MM)

Inner Diameter, Bottom:  5.56 IN   (141.22 MM)

Length:  19.50 IN   (495.30 MM)

Thread:  N/A PANEL

Physical Specifications
Handle:  NONE

Seal Material:  NEOPREN

Type of Adhesive:

Type of Endcap:  GALV. METAL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  127 SQ.FT.

Plating:

Outer Jacket:  YES

Configuration:  N/A 19.5 X 5

Packaging Specifications
Number per Carton:  1

Carton Weight:  13.00 LB   (5.90 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

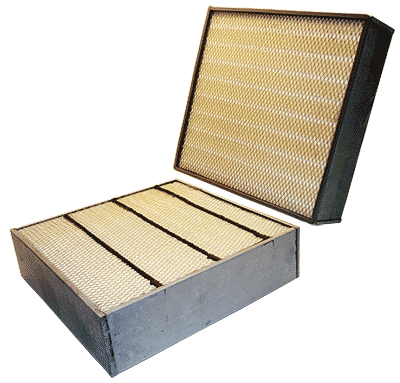

Intake Air Filter Element
