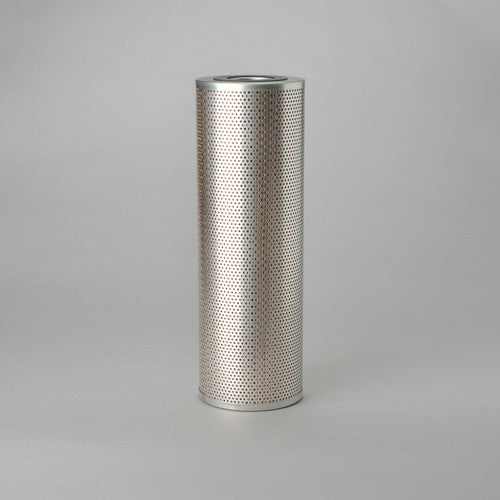

Q736-10| Flo-Line | Pleated Paper Element OFS # 97-01-0482

PLEATED PAPER ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  10.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  100 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  6.00 IN   (152.40 MM)

Outer Diameter, Bottom:  6.00 IN   (152.40 MM)

Inner Diameter, Top:  2.63 IN   (66.80 MM)

Inner Diameter, Bottom:  2.63 IN   (66.80 MM)

Length:  18.00 IN   (457.20 MM)

Thread:  NONE

Physical Specifications
Handle:  YES

Seal Material:  CORK

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  32 SQ.FT.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  6

Carton Weight:  25.00 LB   (11.34 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
