PX163C| Pipercross | OFS # 97-22-1050

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  8.25 IN   (209.55 MM)

Outer Diameter, Bottom:  7.24 IN   (183.90 MM)

Inner Diameter, Top:  4.65 IN   (118.11 MM)

Inner Diameter, Bottom:  0.67 IN   (17.02 MM)

Length:  18.47 IN   (469.14 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE / BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  6.00 LB   (2.72 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

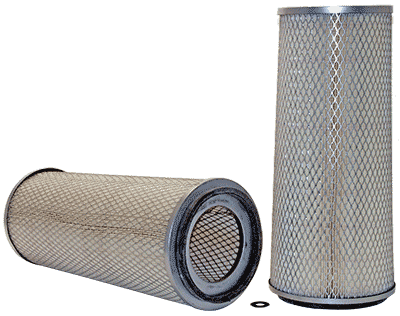

Intake Air Filter Element
