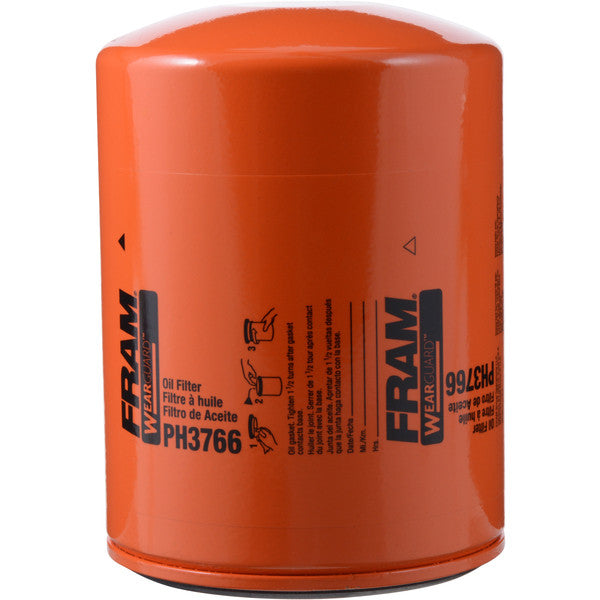

PH3766 | FRAM | Lube Spin-on Full Flow Filter Element
***Image may vary***

PH3766 | FRAM | Lube Spin-on Full Flow Filter Element | OFS# 97-25-0385

In Stock


Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  4.25 IN   (107.95 MM)

Outer Diameter, Bottom:  4.25 IN   (107.95 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  5.88 IN   (149.35 MM)

Thread:  1-1/2-16



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  22.20 LB   (10.07 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
