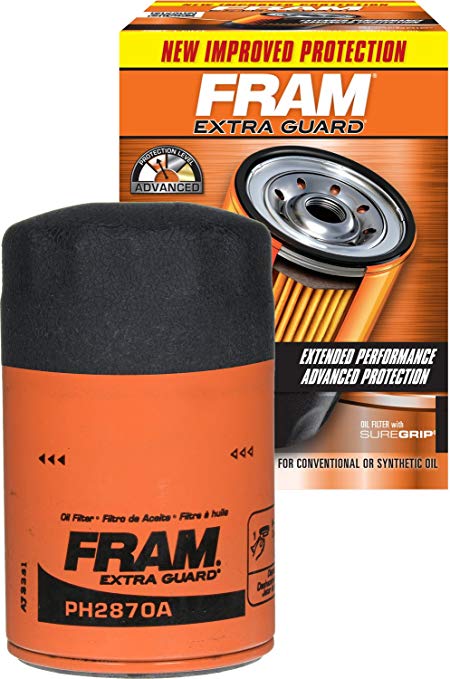

PH2870A | FRAM | Spin-On Filter Element
The FRAM PH2870A Spin-on Oil Filter Is Designed For High-Performance Filtration And Advanced Engine Protection.
- Dirt And Other Damaging Particles Can Be A Major Threat To Your Engines Life But By Changing Your Oil Filter Every 3000 Miles/3 Months With A FRAM Oil Filter, You Can Count On Getting The Highest Performance And The Full Life Out Of Your Engine.
- Protects Your Engine 3x More Than The Average Filter, By Using A Cellulose And Glass Blended Media.
- Handles High Flow And Low Restrictions.
- Dirt Trapping Efficiency Of 95%.
Shipping & Packaging Specifications
Filters Per Carton: 12
Stock Status: IN STOCK
Lead Time: Usually Ships In 24-48 Hours
Shipping Service: UPS GROUND
Carton Weight: 11.00 LB (4.99 KG)
Performance Data
Micron Rating: 25.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: 30 PSID BY-PASS VALVE
Dimensional Specifications
Outer Diameter, Top: 3.05 IN (77.47 MM)
Outer Diameter, Bottom: 3.05 IN (77.47 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 4.57 IN (116.08 MM)
Thread: 3/4-16 UNF2B
Physical Specifications
Brand: FRAM
SKU: 97-25-0353
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
