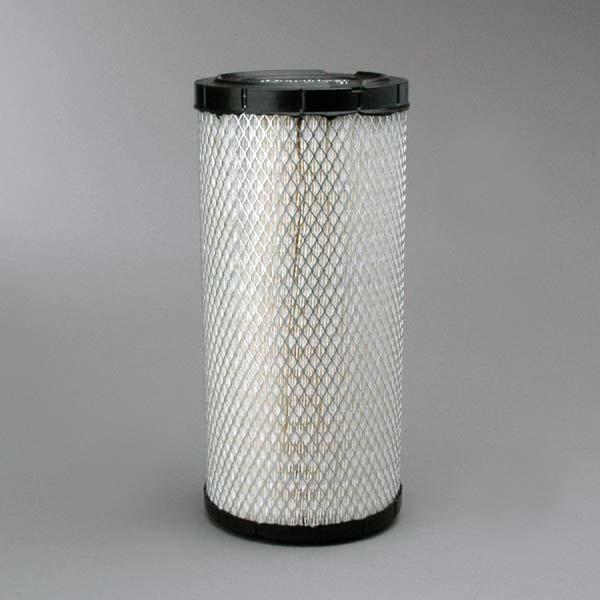

P828889 | Donaldson | Intake Air Filter Element
***Image may vary***

P828889 | Donaldson | OFS # 97-28-4541




Lead Time: Usually ships in 24-48 hour

Performance Data
Micron Rating:  0.00

Beta Rating:  N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  6.50 IN   (165.10 MM)

Outer Diameter, Bottom:  6.50 IN   (165.10 MM)

Inner Diameter, Top:  3.75 IN   (95.25 MM)

Inner Diameter, Bottom:

Length:  14.00 IN   (355.60 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:  MOLDED

Type of Adhesive:

Type of Endcap:  MOLDED

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  3.10 LB   (1.41 KG)



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**

Intake Air Filter Element
